Products
Loop Cable Seal
High Barrier Metal Security Seal
- One piece high security barrier seal.
- Unique lock design that is virtually impossible to open.
- No tool required for installation, simply push cable through body to lock.
- Requires cable cutter to remove.
- Standard overall length 425 mm with 4 mm diameter strong aircraft cable.
- Can be supplied in other desired cable length.
- Once locked, any attempt to separate cable from seal body only serves to strengthen the connection.
- Maximum protection against pilferage, tampering, adulteration, theft.
- no cut and rejoin possible.
- Pull apart force approximate 2000 kg.
- Materal : Aluminium body with aircraft cable
- Seals supplied with engraved text matter upto 8 character and non-repeat sequential number of 7 digit.
- To order use part no. CLS-425-4
Cable Security Seals
- One piece Aluminium Seal with galvanised aircraft cable.
- Locking Key supplied with each seal.
- Easy to use, just insert cable through cross drilled hole and tighten Locking Key against cable until key shears off.
- Pass through holes as small as 2.0 mm. with ease.
- Flexible to secure uneven or bent door locking mechanisms or where opening are too far apart from other type of seal.
- Available in High Tensile Airecraftcable diametesr 1.6, 2.0, 4.0 & 5.0 mm. to accommodate a wide range of applications.
- Breaking off Locking key makes it impossible to reapply the seal once removed.
- Can be supplied with Stainless Steel Aircraft Cable on specific request.
- Other lengths of Aircraft Cables can be provided against specific requirement for larger quantity order.
- Material : Corrosion resistant Aluminium body with Galvanised Aircraft Control Cable.
Recommended Applications
- CONTAINERS
- TRUCKs
- ELECTRIC/WATER METERS
- TANKER VALVES
- CURTAIN BUCKLES
- VEHICLE DOORS
- WHEEL CHAIRS
- DISTRIBUTION BOXES,
- TELECOM.
|

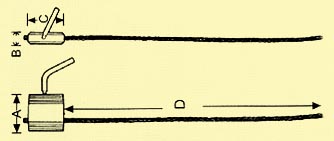

D I M E N S I O N S |
||||||
| SAFCON Part No. |
A (mm.) |
B (mm.) |
C (mm.) |
D (mm.) |
Aircraft Cable Dia mm |
Tensile strength |
| CSS-2-15 | 25 | 9.0 | 25 | 185 | 1.6 | +250 kgs. |
| CSS-2-20 | 25 | 9.0 | 25 | 185 | 2.0 | +300 kgs. |
| CSS-3-40 | 41 | 12.5 | 35 | 220 | 4.0 | +560 kgs. |
| CSS-3-50 | 41 | 12.5 | 35 | 220 | 5.0 | +750 kgs. |
.jpg)
| CUSTOMISATION | ||
| STANDARD COLOURS | NAME/LOGO (Printed) |
SERIAL NUMERING |
| Red, Yellow, Blue, Green, Orange. Other colours on Quantity orders | Text matter only (max 8 digit) |
max 7 digit |
|
Applications shown are typical, but any of the range of seals from SAFCON may suit your particular need |
||
| INSTALLATION INSTRUCTIONS | ||
 |
 |
 |
| 1. Place loose end of cable through opening of application to be sealed, Insert end of cable into pre-drilled hole in seal body and pull to desired loop length. | 2. Screw Locking Key into threaded hole inside of seal body to finally anchor cable. | 3. Turn key until it shears off. Discard the broken key handle piece. |
